JSM-AB Series

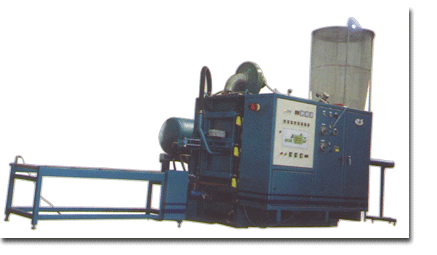

EPS Automatic Block Vacuum Forming Machine

Features:

  • With stainless molding board provided with a plurality of air holes.
  • Side door can be opened automatically to transport the end products directly from the molding onto the conveyer, then start the next cycle of injection molding process immediately. The working process is fully automatic.
  • Stable and rapid steam heating fast vacuum temperature cooling to complete one cycle of operation within a very short period.

    SPECIFICATION:

TYPE UNIT AB-2000-B AB-2000 AB-3000 AB-4000 AB-6000
PRODUCT SIZE mm 2000x1000x1000 2000x1000x500 3000x1000x500 4000x1000x500 6000x1000x500
STEAM INLET INCH 4"B 4"B 4"B 5"B 5"B
EXHAUST PORT INCH 6"B 6"B 6"B 6"B 8"B
MOTOR OF HYDRUALIC KW x P 1.5x4 2.25x6 3.75x6 5.5x6 5.5x6
MOTOR OF VACUUM KW x P 7.5x4 7.5x4 11.5x4 15x4 15x4
MOTOR OF INJECTION KW x P 2.2x2 2.2x2 3.7x2 3.7x2 3.7x2
ELECTRIC POWER SOURCE AC 380.220/100V 380.220/110V 380.220/100V 380.220/110V 380.220/110V
MACHINE WEIGHTS TON 6.2 6.8 8.5 8.5 15.2
MACHINE DIMENSION LxWxH 4000x2100x2200 4200x2200x2200 5300x2200x2200 3500x6500x2200 3500x7500x2500
